Vacuum Conveyor – Pneumatic Type
Product Highlights
Purely pneumatic explosion-proof design eliminates spark hazards. Compact, simple structure, easy to clean, and ideal for flammable/explosive production environments.
Application Scope
Widely used for enclosed conveying of powders and granular materials in fine chemicals, pharmaceuticals, lithium battery materials, and flammable/explosive powder processing industries.
Suitable Materials
Powdered medicines, fragrance powders, lithium battery powders, plastic pellets, chemical powders, pigments, food additives, and other powdered or granular materials.
How it works
Adopts Venturi pneumatic vacuum generation technology. High-speed compressed air jets create negative pressure to suction materials, while a pneumatic control valve automatically completes the feed and discharge cycle. With no electrical components, it features a compact structure, smooth operation, low energy consumption, and meets explosion-proof and dust-free conveying requirements. What is the price range for pneumatic vacuum conveyors? Is the air consumption of a pneumatic vacuum conveyor inversely proportional to its conveying distance? Can you recommend well-known brands for pneumatic vacuum conveyors?
Use Cases
Proven across multiple industries and material scenarios.
Food Industry
Motorless pneumatic design eliminates spark risks. 304 stainless steel sealed transport ensures dust-free, contamination-free operation for automated feeding in baking, seasoning, and dairy production.
Healthcare Industry
Meets GMP cleanroom standards; sealed transport minimizes manual contact. Pure pneumatic drive ensures explosion-proof safety and eliminates cross-contamination of powders.
Chemical Industry
Pneumatically powered for intrinsic explosion safety; fully enclosed to prevent leakage of toxic and irritating dust, ideal for flammable and explosive powder applications.
Mining
Safe for high-dust environments with no electrical components. Enclosed conveying minimizes ore dust dispersion, ideal for feeding in mineral processing and grinding operations.
Environmental Industry
Explosion-proof safety for waste gas denitrification and desulfurization, sealed chemical dosing in wastewater treatment, and automated powder dispensing.
Technical Reference
Detailed technical specifications and product details
Technical Specifications
Technical Reference
| Capacity | 50-4000 kg/h |
| Power | 1.1-15kW |
| Transport Distance | 3-25m |
| Length and Width | Customize on demand |
| Batch Throughput | 5-200L/batch |
| Vacuum range | -0.03~-0.07MPa |
| Filtration Accuracy | 0.3μm |
| Working Air Supply Pressure | 0.4-0.6MPa |
| Hopper Volume | 10-300L |
| Cycle | 10-60s/batch |
| Pulse-jet cleaning method | Automatic pulse reverse cleaning (auto dust removal after batch) |
| Control Method | PLC fully automated control with manual/automatic switching and intermittent cycle operation |
| Suitable Materials | Powders, granules, and small chunks (suitable for batch feeding in food, pharmaceutical, chemical, and building materials industries) |
Product Details

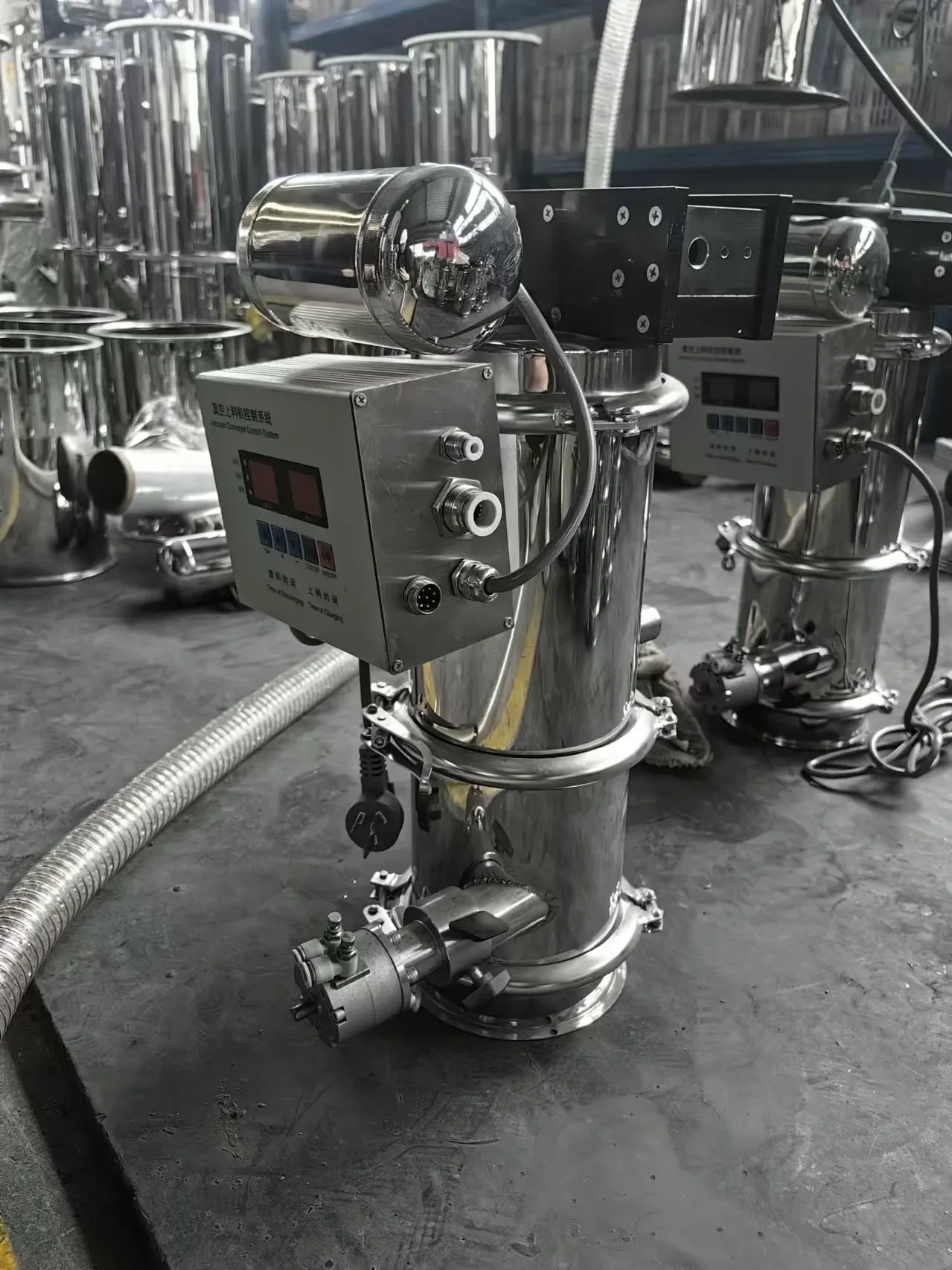

Actual Product Photos

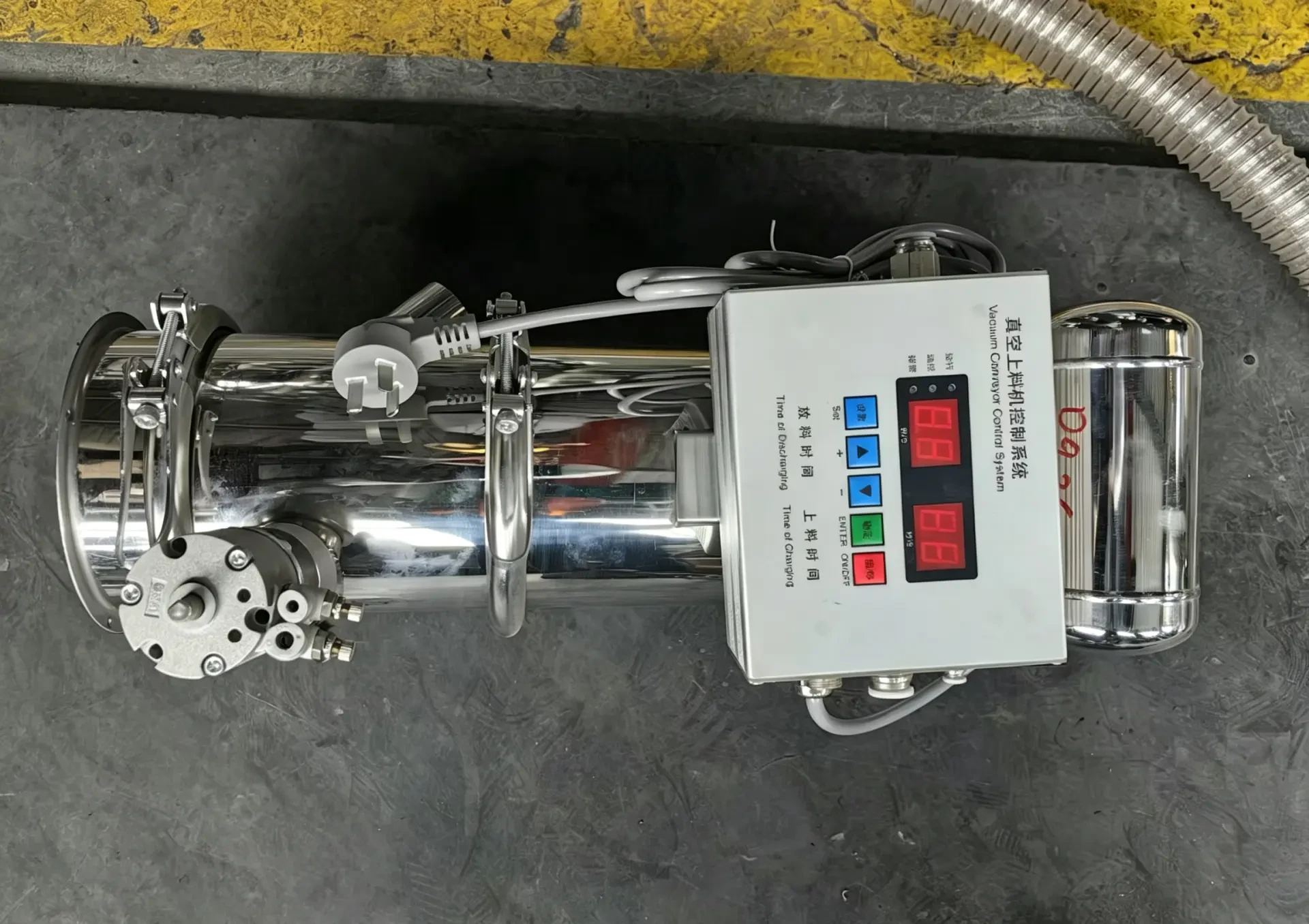

Actual Product Photos

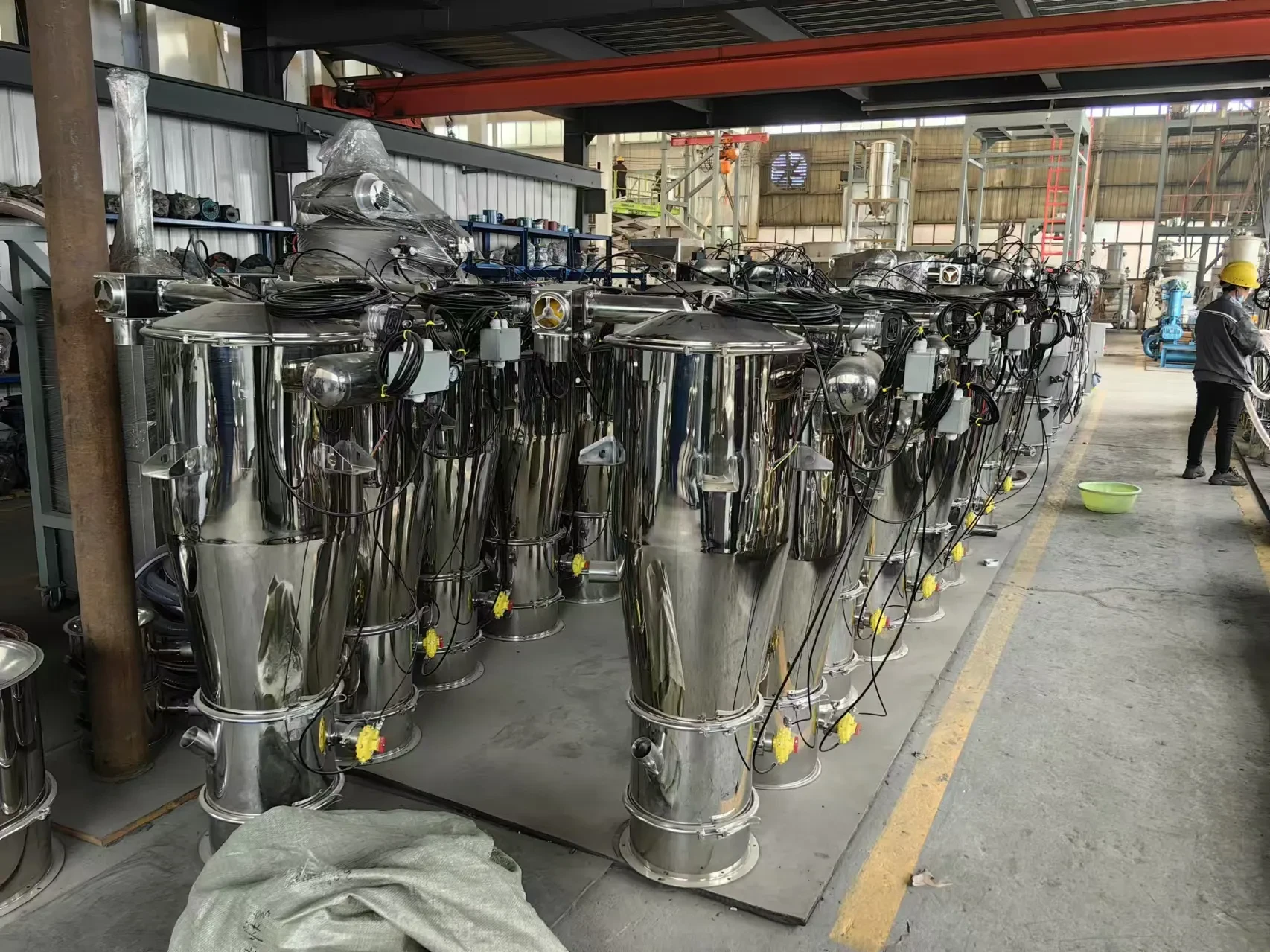

Actual Product Photos

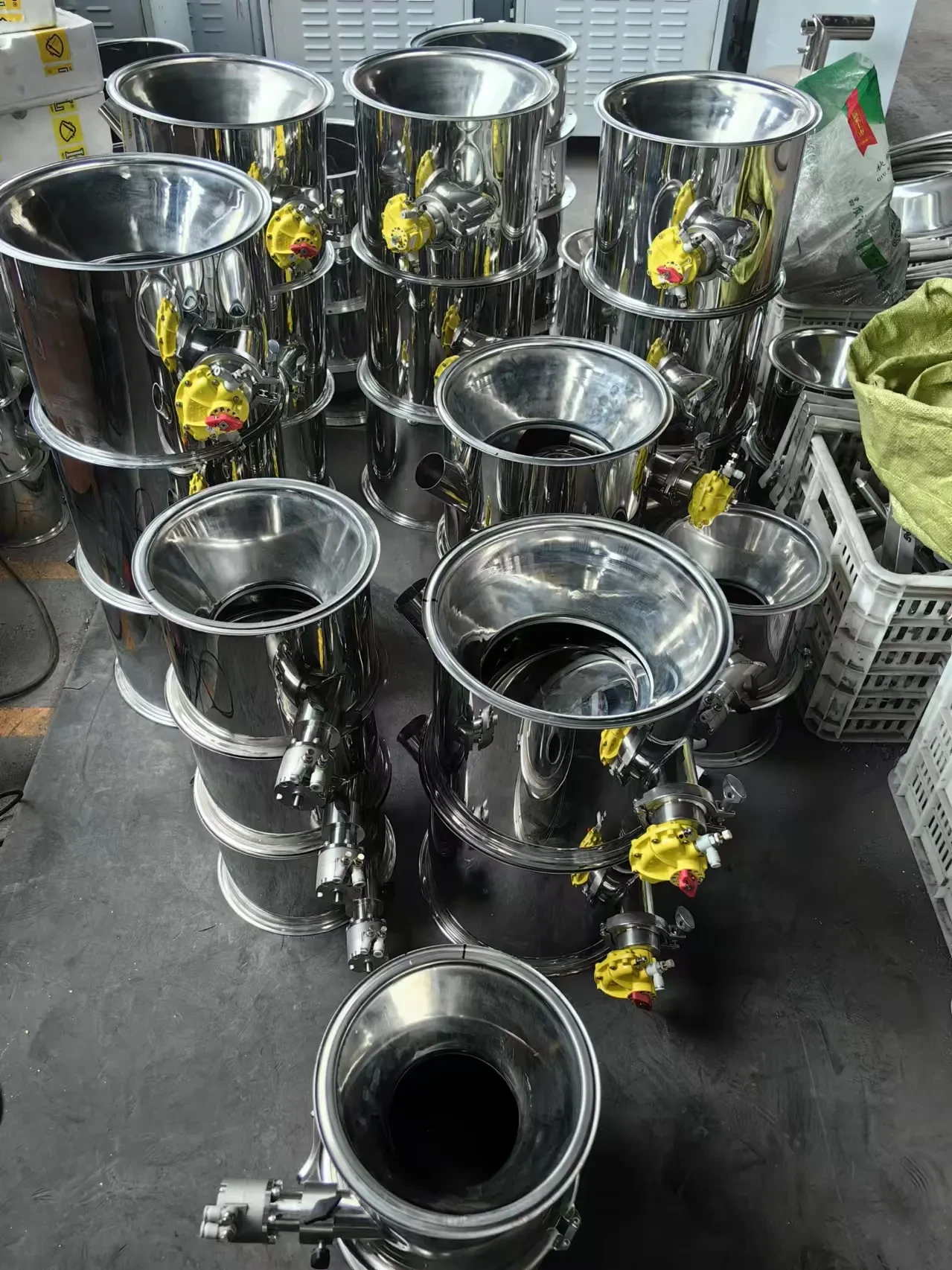

Actual Product Photos

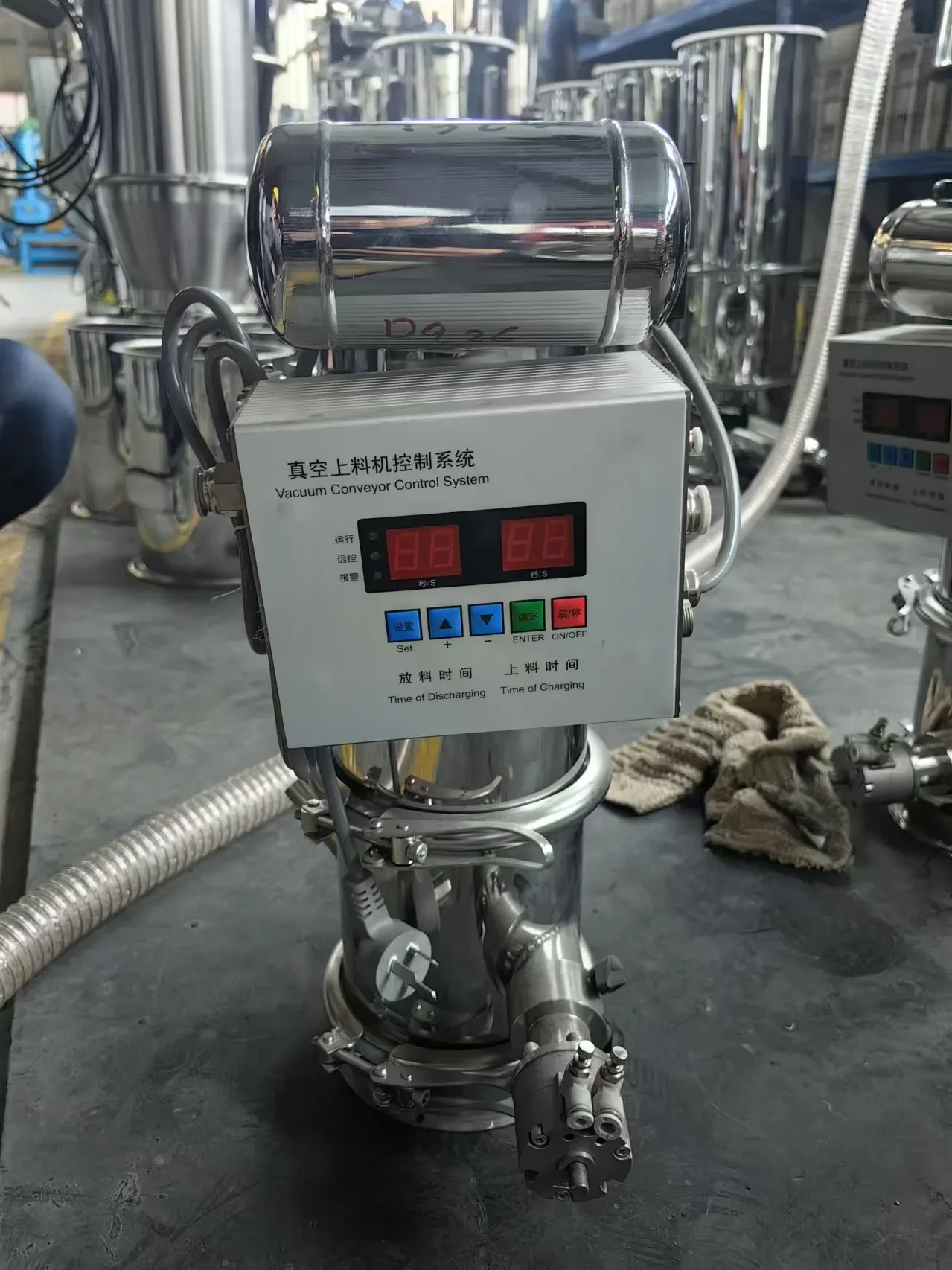

Actual Product Photos
